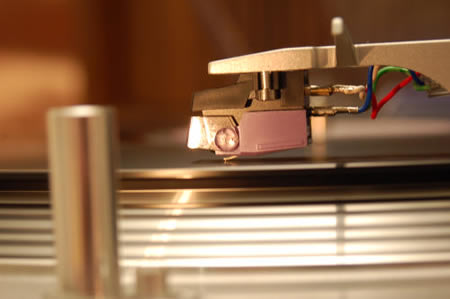

AT440MLa
- phono cartridge SPECIFICATIONS:
| Frequency
response (Hz) |
20-20,000 |
| Output
voltage (mV, 1 kHz, 5 cm/sec.) |
4.0 |
| Channel
separation (dB, 1 kHz ) |
27 |
| Channel
balance (dB, 1 kHz) |
0.8 |
| Tracking
force (g) |
1.0-1.8
(1.4 optimal) |
| Coil
impedance (kOhm, 1 kHz) |
3.2 |
| Coil
inductance (mH, 1 kHz) |
490 |
| Load
impedance (kOhm) |
47 |
| Dynamic
compliance (x10-6 cm/dyne) |
10 |
| Static
compliance (x10-6 cm/dyne) |
40 |
| Stylus |
0.12
mil Nude square Micro-Linear stylus |
| Vertical
tracking angle |
20 |
| Dimensions
(mm) |
L
17.3 x W 16.0 x H 28.0 |
| Weight
(g) |
6.5 |
|
